Lap shear strength testing results for diverse Master Bond epoxy adhesives are shown below. Nylon to nylon bonding was done after mechanical abrasion. Most noteworthy is the impressive lap shear strength for the Master Bond Supreme 11HT adhesive system. Determination of the most suitable bonding agent is dependent not only on strength properties but also meeting specific processing and service conditions for the mated nylon surfaces. The nylon coupons measured 4 x 1 x 1/16 inch. Their surface was roughened and cleaned with isopropyl alcohol.

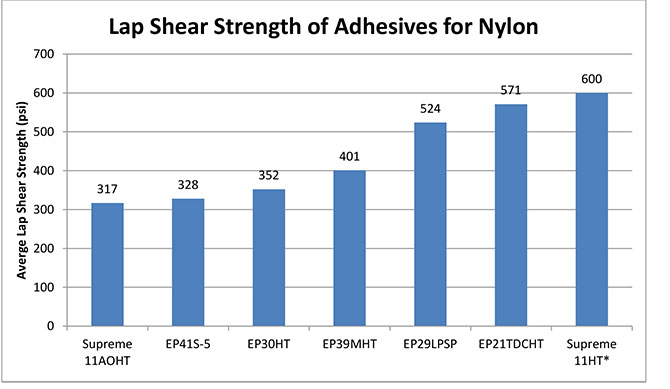

Lap shear strength test results of Master Bond adhesives

Each of these epoxies has its own distinctive advantages, for example Supreme 11AOHT is also thermally conductive and EP41S-5 has exceptional resistance to many chemicals. For more information on Master Bond high strength epoxy adhesives, please contact our technical advisors.

Disclaimer: The findings in this article are not meant to be used for specification purposes.

High Lap Shear Strength Adhesives for Nylon
